| Brand Name: | Lianghe |
| Model Number: | KDF |
| MOQ: | 1 set |
| Price: | $288-498 per set |
| Payment Terms: | T/T,D/A,D/P,Western Union,MoneyGram,L/C |
| Supply Ability: | 2500 sets per month |

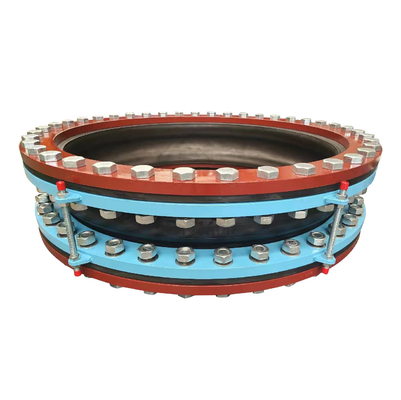

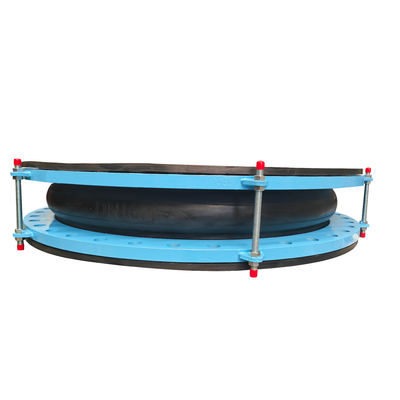

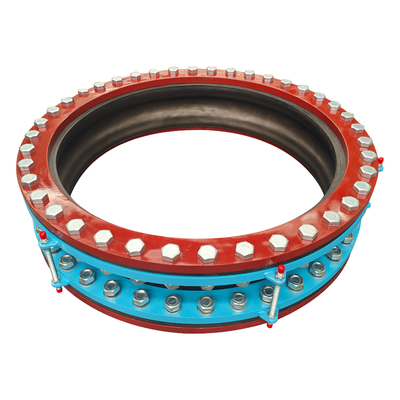

PN10 DN1600 Rubber Expansion Joint – Flanged, Fully Sealed, with Counter Flange Support
Rubber expansion joints consist of inner and outer rubber, nylon cord fabric which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints.
This product can reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.
End Face Fully sealed Rubber Joint Features
• Compact to simplify installation
• Eliminates electrolysis between dissimilar metals
• Absorbs movement in all directions
• Doesn’t require gaskets
• Compensates for misalignment
• Relieves strain in the piping system
• Reduces mechanical noises
If you want to receive a quotation quickly, you need to provide the following parameters:
1. Size
2. Working pressure
3. Flange standard
4. Use medium, so that we can better recommend the appropriate rubber material to you
5. Flange material
| Main connection dimension | ||||||
| Nominal diameter |
Length (mm) |
Axial displacement | Horizontal movement | Deflection angle | ||
| mm | Inch | Extension | Compression | |||
| 32 | 1 1/4 | 95 | 6 | 9 | 9 | 15° |
| 40 | 1 1/2 | 95 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 7 | 10 | 10 | 15° |
| 65 | 2 1/2 | 115 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 16 | 25 | 22 | 15° |
| 250 | 10 | 230 | 16 | 25 | 22 | 15° |
| 300 | 12 | 245 | 16 | 25 | 22 | 15° |
| 350 | 14 | 255 | 16 | 25 | 22 | 15° |
| 400 | 16 | 255 | 16 | 25 | 22 | 15° |
| 450 | 18 | 255 | 16 | 25 | 22 | 15° |
| 500 | 20 | 255 | 16 | 25 | 22 | 15° |
| 600 | 24 | 260 | 16 | 25 | 22 | 15° |
| 700 | 28 | 260 | 16 | 25 | 22 | 15° |
| 800 | 32 | 260 | 16 | 25 | 22 | 15° |
DN1600 flanged rubber joint production process
Packing and delivery
Application Cases
About our factory:
We are a rubber expansion joint factory.
(1) Our raw materials can provide material certificates and the quality is guaranteed.
(2) Rubber is produced strictly according to customer requirements and the rubber raw materials are not changed.
(3) There is no outer rubber layer after vulcanization, forming a whole. The middle layer is made of polyester cord, all mesh. The connecting layer is thick and has strong pressure bearing capacity.
(4) After the finished product is produced, we have professional inspectors to inspect, remove burrs, and eliminate defective products.
(5) The sphere can be affixed with a vulcanization label according to customer requirements. If you need your own brand, support customized molds.
(6) If the sphere is a special length, it can also be customized.
FAQ
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: What's the working temperature?
A: The working temperature is -20℃~120℃.
Q: What’s the material of flange?
A: The material of flange can be carbon steel, stainless steel and ductile iron.
Q: Can you provide only rubber?
A: Yes, we can provide only rubber.
