PTFE Lined Expansion Bellows with JIS 10K Flange Standard

Brand Name:	Lianghe
Model Number:	BEJ
MOQ:	1 set
Price:	$55.6-$189.8
Packaging Details:	Export wooden box packaging
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Henan

Certification:

ISO 9001

Working Pressure:

PN1.0Mpa, 1.6Mpa, 2.5Mpa, 4.0Mpa

Service:

Customized Processing Service

Flange Material:

Q235B,SS304,SS316

Applications:

Industrial Piping Systems

Guide Tube Material:

Carbon Steel，Stainless Steel

Flange Standard:

DIN PN16,CL150,JIS 10K,BS4504

Lining Material:

PTFE Lined

Supply Ability:

2500 sets per month

Highlight:

PTFE lined expansion bellows

JIS 10K flange bellows

PTFE expansion joint bellows

Product Description

Flanged End Connections Engineering Appliances PTFE lined Expansion Bellows with JIS 10K Flange Standard

Product Description:

When it comes to joining pipe lines with different nominal diameters ranging from DN32 to DN3000, the Bellow Expansion Joint is the ideal solution. This product is designed to accommodate various pipe sizes, making it versatile and suitable for a wide range of applications.

The Bellow Expansion Joint is a type of metal bellows expansion joint that is widely used in piping systems to absorb thermal expansion or contraction, reduce vibration, and compensate for misalignment or movement. It is a critical component in ensuring the integrity and efficiency of pipelines.

Constructed with high-quality materials, the Bellow Expansion Joint offers durability and reliability in various operating conditions. The guide tube material options include Carbon Steel and Stainless Steel, providing excellent strength and corrosion resistance.

For enhanced performance and protection against corrosive substances, the Bellow Expansion Joint is lined with PTFE material. This lining material ensures smooth flow within the pipeline and prevents chemical reactions that could compromise the integrity of the joint.

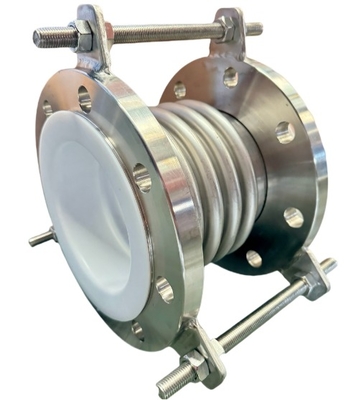

PTFE Lined Expansion Bellows with JIS 10K Flange Standard 0

Whether it's for industrial, commercial, or residential applications, the Bellow Expansion Joint delivers superior performance and longevity. Its innovative design and quality construction make it a dependable solution for connecting pipe lines securely and efficiently.

Technical Parameters:

Nominal Diameter (mm)	Wave number	Pressure level					Effective area of bellows	Maximum outer diameter dimension	length
		0.25	0.6	1	1.6	2.5			Flange JZ/F	Nozzle JZ/J
		Axial compensator,rigidity							Flange JZ/F	Nozzle JZ/J
32	8	25/21	22/26	20/26	18/63	/	16	225	160/250	264/280
32	16	50/11	46/14	41/14	36/32	/	16	225	224/291	316/321
40	8	25/28	22/44	20/44	18/89	15/98	23	244	164/259	269/289
40	16	50/14	46/22	41/22	36/45	31/47	23	244	230/304	319/334
50	8	25/30	22/51	20/70	18/70	15/106	37	259	172/276	282/306
50	16	50/16	46/26	41/35	36/35	31/55	37	259	240/342	347/372
65	8	33/28	30/35	26/44	22/55	15/138	55	270	215/294	300/322
65	12	42/16	38/22	38/32	34/40	31/70	55	270	260/334	340/362
80	8	40/20	36/26	34/33	28/41	19/68	81	284	240/338	344/366
80	10	53/14	49/17	49/21	43/26	29/50	81	284	270/368	374/390
100	6	45/47	45/60	40/75	35/93	25/54	121	304	235/317	323/345
100	10	76/26	74/32	64/40	57/50	38/33	121	304	305/381	387/409
125	5	48/38	42/47	38/59	34/74	29/117	180	334	282/314	316/342
125	9	85/23	77/29	66/36	66/36	49/63	180	334	382/386	388/414
150	5	49/42	44/50	40/62	34/78	29/92	257	364	282/339	338/367
150	8	79/34	71/43	64/51	54/59	50/56	257	364	356/399	402/427
200	4	52/49	46/55	42/68	38/78	29/97	479	442	280/348	348/372
200	6	73/31	65/44	59/52	53/58	46/65	479	442	340/402	402/426
250	4	72/30	65/34	59/42	52/45	34/111	769	507	315/379	415/379
250	6	108/16	97/21	87/35	79/39	48/78	769	507	393/459	493/399
300	4	72/51	65/55	59/59	52/65	47/55	1105	562	366/427	466/467
300	6	108/32	97/35	87/37	79/41	71/47	1105	562	464/525	567/595
350	4	72/58	65/62	59/67	52/74	47/71	1307	622	397/452	497/492
350	6	108/38	97/41	87/44	97/48	71/45	1307	622	509/564	409/604

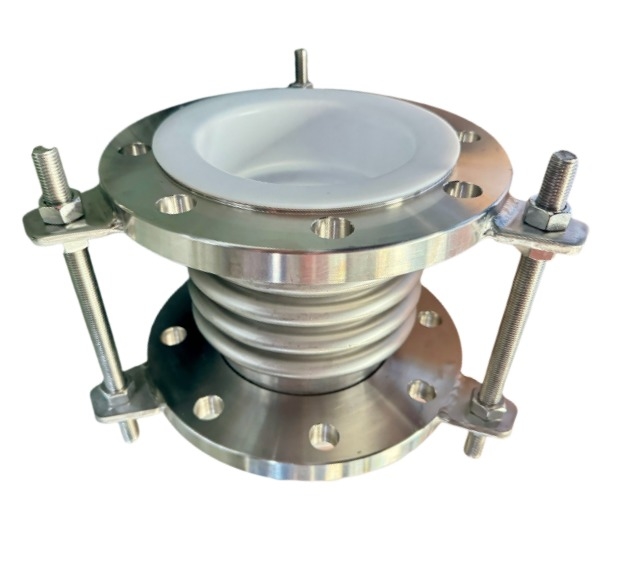

Fluorine-lined corrugated compensator multi-angle details display

PTFE Lined Expansion Bellows with JIS 10K Flange Standard 1

PTFE Lined Expansion Bellows with JIS 10K Flange Standard 2
