Single Ball Flange Rubber Expansion Joint NBR EPDM Stainless Steel

Brand Name:	Lianghe
Model Number:	JGD
MOQ:	1 Set
Price:	$21.8-$50.8
Packaging Details:	Inner: plastic film, then put into carton case. Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

Rubber Expansion Joint

Specifications:

DN20-DN3000

Flange Material:

Carbon Steel / SS304 / SS316

Body Material:

NR,EPDM,NBR

Working Temperature Of The Fluid:

- 10°C To + 150°C

Usage:

Fresh Water And Drinking Water

Surface Treatment:

Galvanize Flange

Supply Ability:

6000 set per month

Highlight:

Single Ball Flange Rubber Expansion Joint

NBR EPDM Rubber Expansion Joint

Stainless Steel Flange Expansion Joint

Product Description

Single Ball Flange Rubber Bellows Expansion Joint Custom NBR EPDM Rubber Stainless Steel Flange

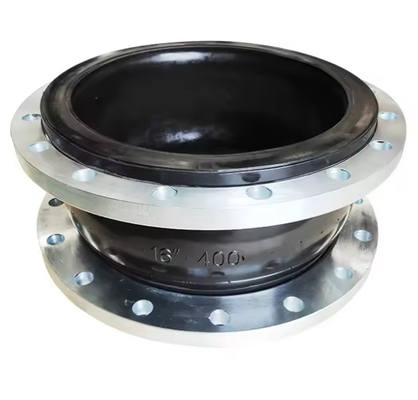

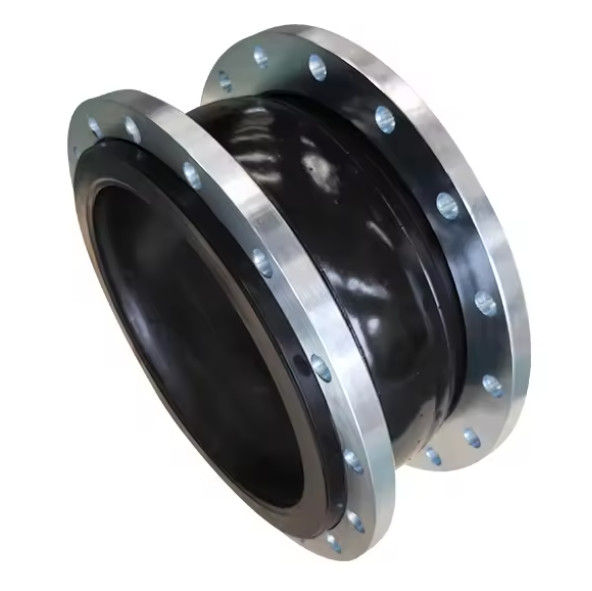

Flexible rubber expansion joints are composed of rubber spheres and metal flanges, with the flange ends connected to pipe flanges.

Materials for pump and valve-specific expansion joints: They feature corrosion resistance, wear resistance, acid and alkali resistance, and non-hygroscopic properties; they also have good elasticity and low hygroscopicity; they can resist thermal expansion and reduce pipe diameter.

They reduce thermal expansion or stress caused by temperature changes during pipeline transportation. They are one of the most commonly used components in pipeline systems, featuring a compact size, lightweight design, easy installation, reduced installation space, and material savings. During operation, they generate some displacement, which helps reduce vibration and noise in pipelines with significant vibration (such as pump systems).

Single Ball Flange Rubber Expansion Joint NBR EPDM Stainless Steel 0

NO	Name	Material
1	Outer and Inner rubber	NR,EPDM,NBR
2	Frame	Nylon cord fabric
3	Pressurized ring	steel wire strang
4	Flange	SS304,SS316

Nominal diameter		Length (mm)	Axial displacement(mm)		Horizontal displacement(mm)	Deflection angle
mm	inch	Length (mm)	Elongation	compression	Horizontal displacement(mm)	Deflection angle
32	1 1/4	95	6	9	9	15°
40	1 1/2	95	6	10	9	15°
50	2	105	7	10	10	15°
65	2 1/2	115	7	13	11	15°
80	3	135	8	15	12	15°
100	4	150	10	19	13	15°
125	5	165	12	19	13	15°
150	6	180	12	20	14	15°
200	8	210	16	25	22	15°
250	10	230	16	25	22	15°
300	12	245	16	25	22	15°
350	14	255	16	25	22	15°
400	16	255	16	25	22	15°
450	18	255	16	25	22	15°
500	20	255	16	25	22	15°
600	24	260	16	25	22	15°
700	28	260	16	25	22	15°
800	32	260	16	25	22	15°
900	36	260	16	25	22	15°
1000	40	260	18	26	24	15°
1200	48	260	18	26	24	15°
1400	56	350	20	28	26	15°
1600	64	350	25	35	30	10°

The range of size from DN15 to DN4000 are all available.

We can also customise according to your requirements. Please feel free to contact us for further information.

Single Ball Flange Rubber Expansion Joint NBR EPDM Stainless Steel 1

Product Application

This product is the flexible rubber single ball rubber joint has good comprehensive properties, it is widely used in chemical industry,construction,water supply,drainage,oil,light and heavy industry,refrigeration,sanitation,plumbing, fire,electricity and other infrastructure projects.
According to different materials,can be made of acid,alkali,corrosion resistance,oil resistance, high temperature resistance,radiation resistance,wear-resistant,anti-aging and other varieties,to adapt to a variety of media and environment.

Single Ball Flange Rubber Expansion Joint NBR EPDM Stainless Steel 2

Rubber joint manufacturing process

Single Ball Flange Rubber Expansion Joint NBR EPDM Stainless Steel 3
