6 Inch Double Sphere Rubber Expansion Joint PN10 PN25 Water Plant

Brand Name:	Lianghe
Model Number:	KXT
MOQ:	1 Set
Price:	$8-$11
Packaging Details:	Inside: Plastic Film ，Outside: Wooden Case
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

Shock-absorbing Rubber Expansion Joint Double Sphere

Overall Length:

According To Requirements

Flange Material:

Stainless Steel

Rubber Material:

EPDM,NR,NBR,PTFE,etc

Flange Standard:

DIN JIS GB,etc

Pipe Features:

Flexible

Working Pressure:

PN6,PN10,PN16,PN25

Supply Ability:

5000 set per month

Highlight:

6 inch rubber expansion joint

double sphere expansion joint PN10

water plant rubber expansion joint

Product Description

6inch PN10 PN25 Water Plant Flexible Stainless Steel Shock-absorbing Rubber Expansion Joint double sphere

Double ball rubber joint:

Used for displacement compensation, vibration reduction, noise reduction, and installation error absorption in piping systems, featuring a double corrugated design; suitable for high-pressure, large displacement, and strong vibration critical pipelines.

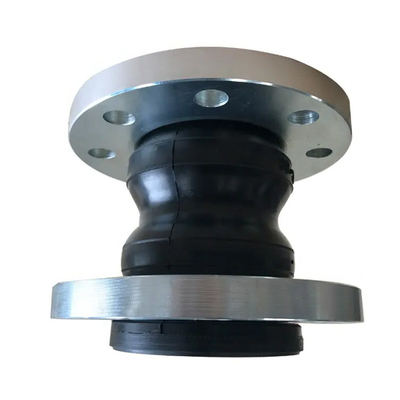

6 Inch Double Sphere Rubber Expansion Joint PN10 PN25 Water Plant 0

Advantages of Double Ball Rubber Joints

1. Superior Displacement Compensation

Three-dimensional compensation: axial ±15 mm + lateral ±10 mm + angular ±5° (under DN100 conditions)

Comparative Advantage: 40% improvement in compensation capacity compared to single-ball joints, no additional hinge brackets required

2. Excellent Vibration Damping and Noise Reduction

Vibration transmission rate ≤5% (tested data, single-ball joints approximately 15%)

Case Study: Noise levels in a power plant's pump room reduced from 95 dB to 75 dB

3. Long-Term Fatigue Resistance

Dynamic Lifespan: ≥5,000 full displacement cycles (GB/T 26121 standard)

Enhanced Design: Double-layer steel wire skeleton

Connection data table for double sphere rubber expansion joints

Nominal diameter		Length(mm)	Axial displacement(mm)		Lateral displacement	Angular displacement
mm	inch	Length(mm)	Elongation	Compression	Lateral displacement	Angular displacement
40	1 1/2	165	30	50	45	35°
50	2	165	30	50	45	35°
65	2 1/2	175	30	50	45	35°
80	3	175	35	50	45	35°
100	4	225	35	50	40	35°
125	5	230	35	50	40	35°
150	6	325	35	50	40	35°
200	8	325	35	50	40	35°
250	10	325	35	60	35	30°
300	12	325	35	60	35	30°
350	14	350	35	60	35	30°
400	16	350	35	60	35	30°
450	18	350	35	60	35	30°
500	20	350	35	60	35	30°
600	24	400	35	60	35	30°

The data above is only for reference, pls contact us for exact data and price.

Displacement diagram of double ball rubber joint

6 Inch Double Sphere Rubber Expansion Joint PN10 PN25 Water Plant 1

Details of double ball rubber joints

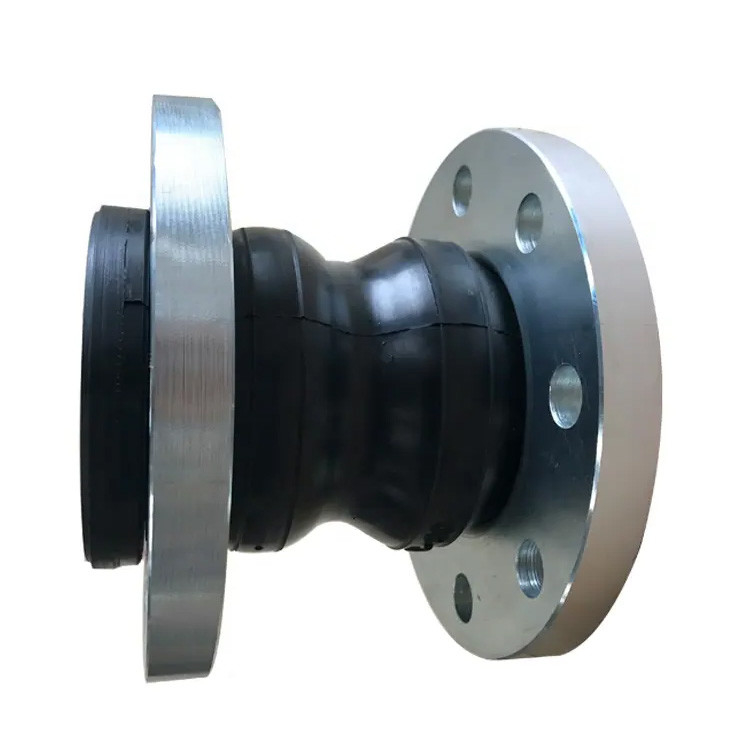

6 Inch Double Sphere Rubber Expansion Joint PN10 PN25 Water Plant 2

Double ball rubber joint with different rubber materials

6 Inch Double Sphere Rubber Expansion Joint PN10 PN25 Water Plant 3

Core application areas of double ball rubber joints

1.Municipal water supply: vibration reduction at pump inlets and outlets, compensation for thermal expansion and contraction of pipes

2.Electricity/nuclear power: turbine circulating water pipes, nuclear power plant cooling systems

3.HVAC: Central air conditioning chilled water circulation, boiler steam pipes

4.Metallurgy/Mining: Blast furnace cooling systems, slurry transport pipelines

6 Inch Double Sphere Rubber Expansion Joint PN10 PN25 Water Plant 4
