Stainless Steel Flange Expansion Joint with Metal Bellows

Brand Name:	Lianghe
Model Number:	BEJ
MOQ:	1 Set
Price:	$15.8-$165.8
Packaging Details:	Inside: Plastic Film ，Outside: Wooden Case
Payment Terms:	T/T, D/A, D/P, Western Union, MoneyGram, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Product Name:

Flexible Metal Bellow Expansion Joint

Size:

DN32 - DN3000mm

Material Of Flange:

Stainless Steel 304,carbon Steel

Connection:

Flange End

Working Temperature:

-10℃ ~ +300℃

Usage:

Joining Pipe Lines

Application:

Water Industrial Etc

Supply Ability:

2000 sets per month

Highlight:

stainless steel flange expansion joint

metal bellows expansion joint

flange bellow expansion joint

Product Description

Stainless Steel Flange Connected Expand Flexible Metal Bellow Expansion Joint

A stainless steel flange-connected expandable flexible metal bellows expansion joint is a crucial component in piping systems, designed to absorb thermal expansion, vibrations, and misalignments while maintaining a leak-proof connection.

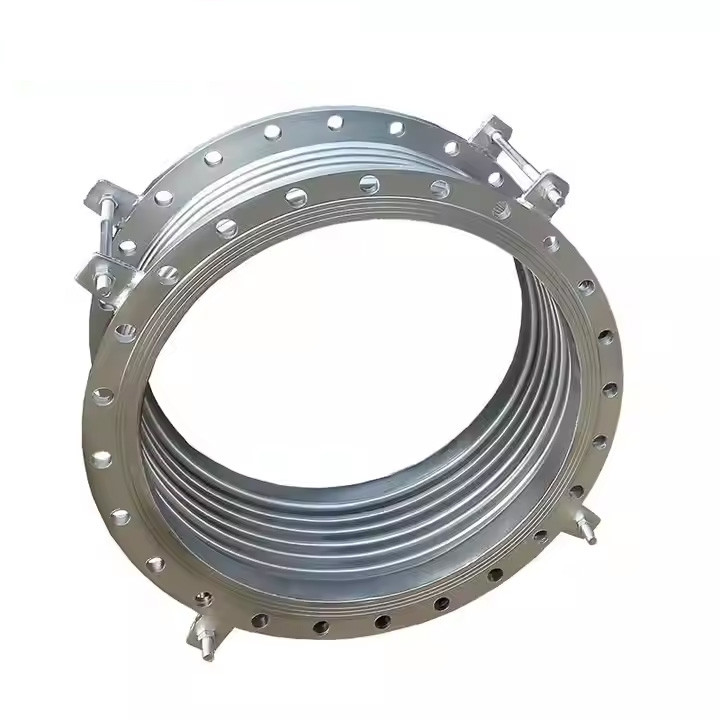

Stainless Steel Flange Expansion Joint with Metal Bellows 0

Key Components & Features:

1.Metal Bellows

Made of stainless steel (SS304, SS316, etc.) for corrosion resistance and durability.

Flexible convolutions allow movement (axial, lateral, angular) to compensate for thermal expansion/contraction.

2.Flange Connection

Typically features ANSI, ASME, DIN, or EN flanges for easy bolting to pipelines.

Ensures a strong, leak-proof seal under pressure.

3.Flexibility & Movement Absorption

Axial Compression/Extension – Handles pipe lengthening/shortening due to temperature changes.

Lateral Offset – Accommodates side-to-side misalignment.

Angular Deflection – Adjusts for minor piping angular shifts.

4.Pressure & Temperature Resistance

Suitable for high-pressure systems (varies by design).

Operates in a wide temperature range (from cryogenic to high heat).

5.Optional Features

Inner liner – Reduces turbulence and erosion.

Cover (shroud) – Protects bellows from external damage.

Limit rods – Prevent over-extension under pressure.

Advantages:
✔ Long service life (resists fatigue and corrosion).
✔ Minimal maintenance (no moving parts).
✔ Reduces stress on pipes, valves, and pumps.

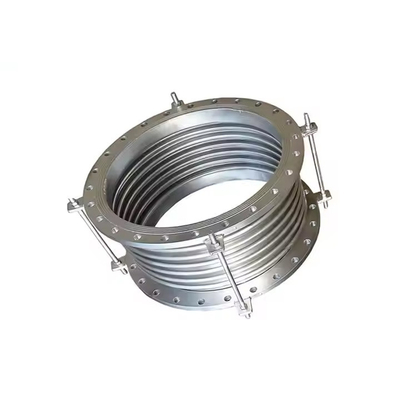

Stainless Steel Flange Expansion Joint with Metal Bellows 1

Would you like help selecting the right specifications (size, pressure rating, flange type) for your application?

ominal Diameter (mm)	Wave number	Pressure level					Effective area of bellows	Maximum outer diameter
		0.25	0.6	1.0	1.6	2.5
		Axial compensation/mm,Stiffness(N/mm)
32	8	25/21	22/26	20/26	18/63	/	16	225
32	16	50/11	46/14	41/14	36/32	/	16	225
40	8	25/28	22/24	20/44	18/89	15/98	23	244
40	16	50/14	46/22	41/22	36/45	31/47	23	244
50	8	25/30	22/51	20/70	18/70	15/106	37	259
50	16	50/16	46/26	41/35	36/35	31/55	37	259
65	8	33/28	30/35	26/44	22/55	15/138	55	270
65	12	42/16	38/22	38/32	34/40	31/70	55	270
80	8	40/20	36/26	34/33	28/41	19/68	81	284
80	10	53/14	49/17	49/21	43/26	29/50	81	284
100	6	45/47	45/60	40/75	35/93	25/54	121	304
100	10	76/26	74/32	64/40	57/50	38/33	121	304
125	5	48/38	42/47	38/59	34/74	29/117	180	334
125	9	85/23	77/29	66/36	58/45	49/63	180	334
150	5	49/42	44/50	40/62	34/78	29/92	257	364
150	8	79/34	71/43	64/51	54/59	50/56	257	364
200	4	52/49	46/55	42/68	38/78	29/97	479	442
200	6	73/31	65/44	59/52	53/58	46/65	479	442

Factory Show

Stainless Steel Flange Expansion Joint with Metal Bellows 2

Applications:
HVAC Systems – Absorbs thermal movement in heating/cooling lines.

Industrial Piping – Used in chemical plants, power generation, and oil refineries.

Exhaust Systems – Compensates for vibration and thermal shifts.

Marine & Aerospace – Resists corrosion in harsh environments.

Stainless Steel Flange Expansion Joint with Metal Bellows 3
