Features:

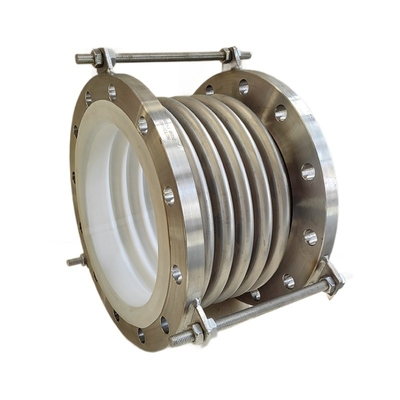

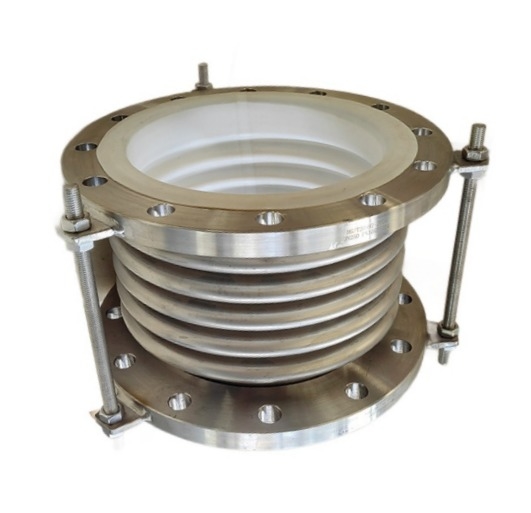

• Product Name: PTFE Lined Bellow Expansion Joint
• Bellows Material: Stainless Steel 304,316,etc.
• Service: Customized Processing Service
• Flange standard: DIN PN16,CL150,JIS 10K,BS4504
• Pressure Rating: 150 Psi

Technical Parameters:

Here's a detailed breakdown of why it's used:

High Purity and Non-Stick Properties: PTFE's smooth, non-porous, and non-stick surface prevents product build-up, facilitates easy cleaning, and ensures media purity. This is critical in industries like pharmaceuticals, food and beverage, and semiconductor manufacturing.

Vibration and Noise Reduction: The flexible bellows design effectively absorbs mechanical vibrations and attenuates noise, protecting connected equipment and reducing overall system noise.

Long Service Life and Low Maintenance: Due to their excellent corrosion and wear resistance, PTFE-lined expansion joints typically have a longer lifespan and require less maintenance compared to other materials in corrosive environments.

Flexibility and Stress Relief: They effectively compensate for pipe movement, reducing stress on the piping system, pumps, and other sensitive equipment, thus preventing premature failure.

Higher Pressure Resistance (compared to solid PTFE): When PTFE is used as a liner within a metal bellows, it provides higher pressure ratings than expansion joints made solely of PTFE, allowing for use in more demanding applications.

Advantages of polytetrafluoroethylene process:

1. High operating temperature - under strong corrosive media conditions, it can meet the operating temperature range of -60 degrees to 250 degrees, and can meet all chemical media in this temperature range

2. Vacuum resistance - can be used under vacuum conditions

3. High pressure resistance - within the temperature range, it can withstand up to 3MPA operating pressure

4. Anti-penetration - polytetrafluoroethylene resin is selected and processed into a high-density, sufficiently thick PTFE lining layer through lining technology,

5. Corrosion resistance - can resist most chemical media, including concentrated nitric acid and aqua regia, and can work at 230℃-250℃ for a long time.

6. Non-adhesion - it has the smallest surface tension among solid materials and does not adhere to any substance.
